KubeStellar has multiple documentation versions to match its multiple releases.
Please make sure you are viewing the docs version which matches the release version of the code you are using!

Using Argo CD with KubeStellar Core chart#

This documents explains how to use the KubeStellar core Helm chart to:

  • deploy Argo CD in KubeFlex hosting cluster;
  • register every WDS as a target cluster in Argo CD; and
  • create Argo CD applications as specified by the chart values.

Pre-requisites#

The prerequisites are the same as installing KubeStellar using the Core chart.

The settings described in this document are an extesnion of the KubeStellar Core chart settings described here.

Installing Argo CD using KubeStellar Core chart#

To enable the installation of Argo CD by the KubeStellar Core chart, use the flag --set argo-cd.install=true. Besides deploying an instance of Argo CD, KubeStellar Core chart will take care of registering all the WDSes installed by the chart as Argo CD target clusters.

When deploying in an OpenShift cluster, add the flag --set argo-cd.openshift.enabled=true.

When deploying in a Kubernetes cluster, use the flag --set argo-cd.global.domain=<url> to provide the URL for the nginx ingress, which defaults to argocd.localtest.me.

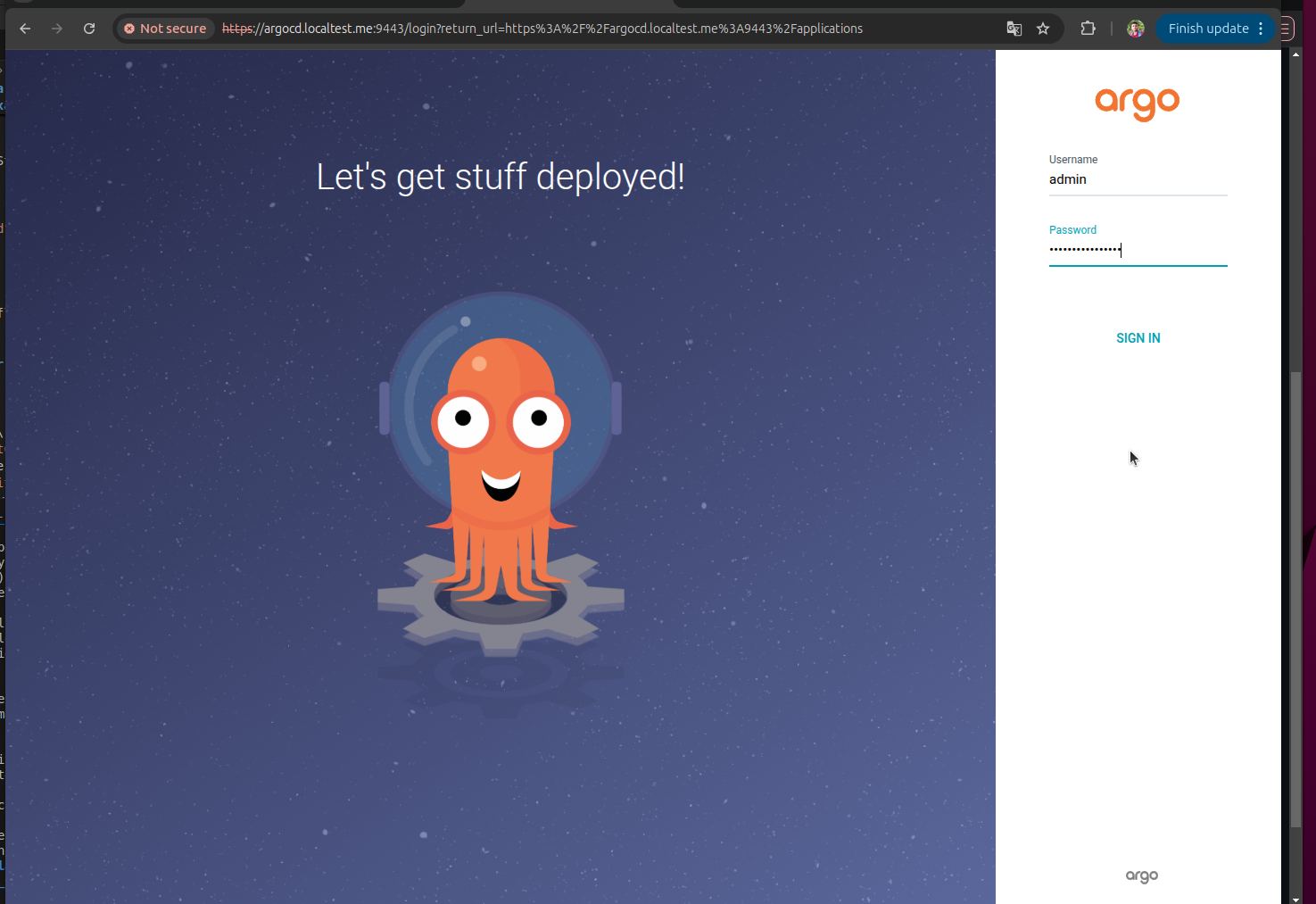

Note that when creating a local Kubernetes cluster using our scripts for Kind or k3s, the nginx ingress will be accessible on host port 9443; therefore the Argo CD UI can be accessed at the address https://argocd.localtest.me:9443.

The initial password for the admin user can be retrieved using the command:

kubectl get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

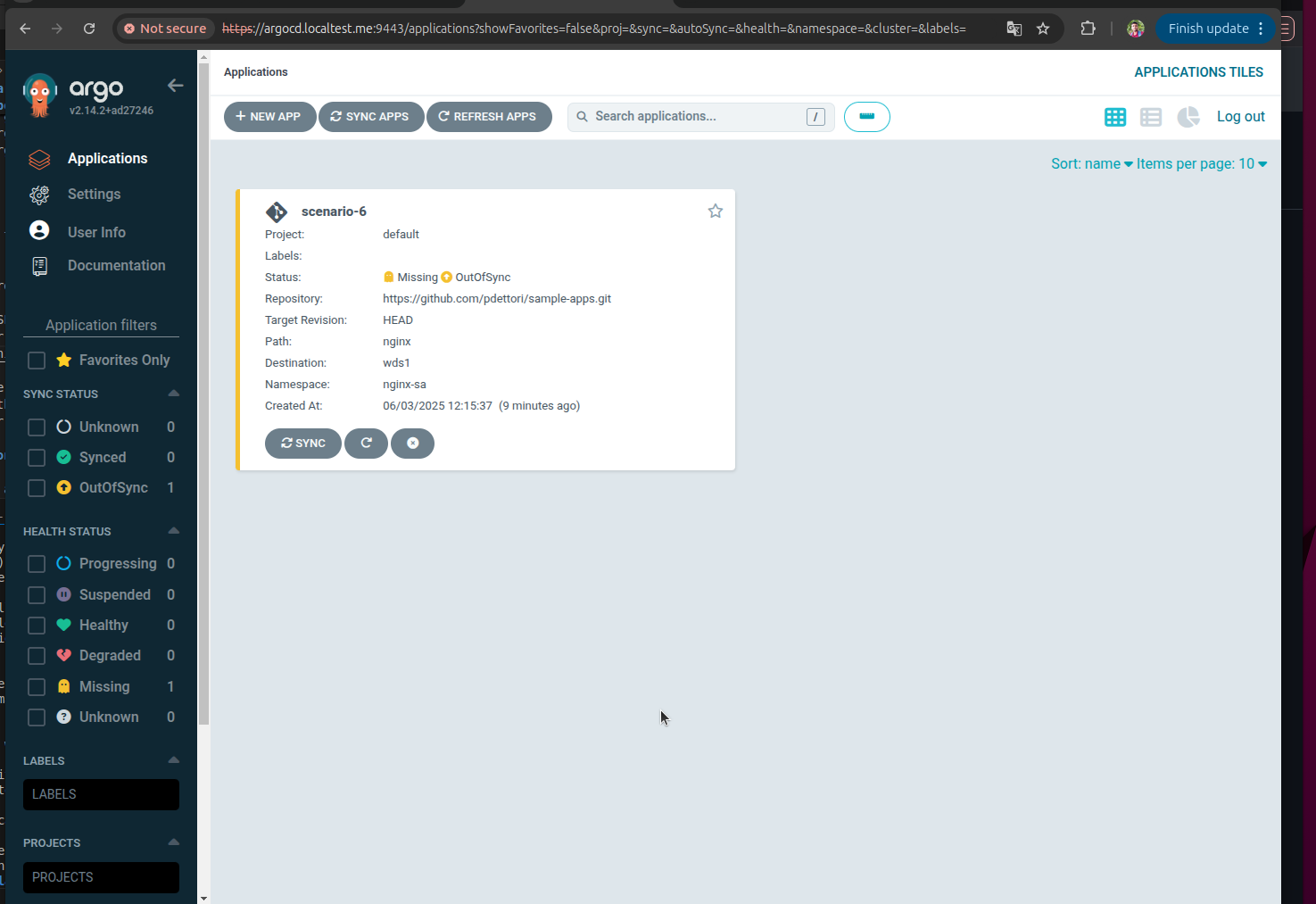

Deploying Argo CD applications#

The KubeStellar Core chart can also be used to deploy Argo CD applications as specified by chart values. The example below shows the relevant fragment of the chart values that could be used for deploying an application corresponding to scenario-6 in KubeStellar docs.

argo-cd:
  applications: # list of Argo CD applications to be create
  - name: scenario-6 # required, must be unique
    project: default # default: default
    repoURL: https://github.com/pdettori/sample-apps.git
    targetRevision: HEAD # default: HEAD
    path: nginx
    destinationWDS: wds1
    destinationNamespace: nginx-sa # default: default
    syncPolicy: auto # default: manual

Alternatively, the same result can be achieved from Helm CLI by using the followig minimal argument (note that the default values are not explicitely set):

--set-json='argo-cd.applications=[ { "name": "scenario-6", "repoURL": "https://github.com/pdettori/sample-apps.git", "path": "nginx", "destinationWDS": "wds1", "destinationNamespace": "nginx-sa" } ]'
